Aoxuan QC12Y — Guillotine Shears
Aoxuan — supplied & supported by A1

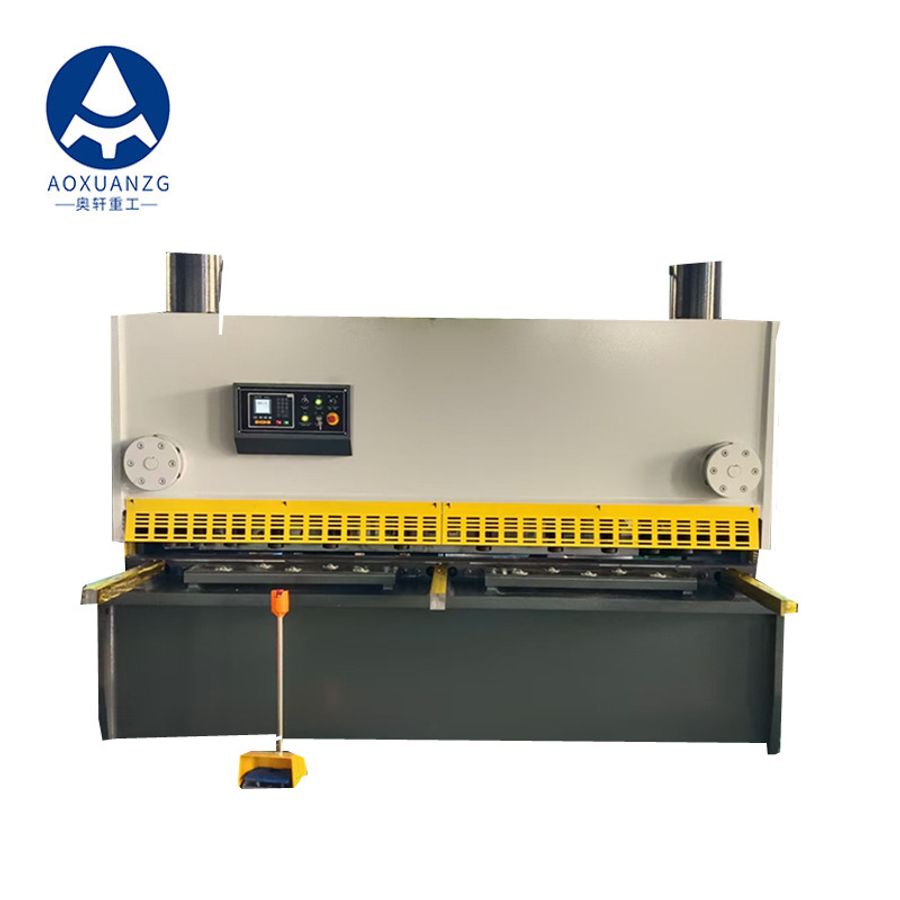

The QC12Y is Aoxuan's hydraulic swing-beam shear: a fast, economical guillotine for sheet and plate with an Estun E21S or DAC-310T backgauge control, four-edge blades and a motorised backgauge. The range runs from 4 mm at 2.5 m to 40 mm at 3.2 m; the four models here cover the sizes most sheet-metal shops cut.
A1 supplies and supports the QC12Y range: delivery, installation, blade-gap setting and commissioning, then service and backgauge control support. Tell us the thickest material you cut regularly and we will point you at the right size rather than the biggest one.
Models in this range
4 models. Pick the size that suits your work — we will confirm the right configuration with you before quoting.
| Model | Cutting length | Max thickness | Quote |
|---|---|---|---|
| 4x2500 | 2,500 mm | 4 mm | Request a quote |
| 6x3200 | 3,200 mm | 6 mm | Request a quote |
| 10x3200 | 3,200 mm | 10 mm | Request a quote |
| 16x4000 | 4,000 mm | 16 mm | Request a quote |
