Aoxuan W12 — Rolling Machines
Aoxuan — supplied & supported by A1

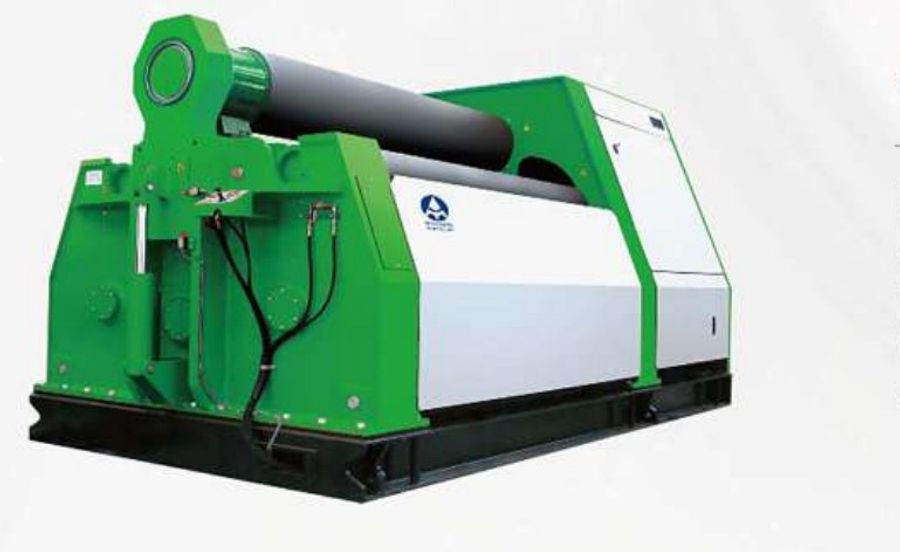

The W12 is the four-roll hydraulic plate roller: the plate is clamped between the top and bottom rolls, both ends pre-bend in one feed and the side rolls do the forming. It suits repeat production, with no re-positioning of the plate between passes. The range runs from 8 mm x 2 m to 60 mm x 3 m; the four models here span 8 mm at 2.5 m to 40 mm at 3 m.
A1 supplies and supports the W12 range: delivery, installation, commissioning and operator hand-over, then service. Tell us the plate and the diameters you roll and we will quote the model and the tooling together.
Models in this range
4 models. Pick the size that suits your work — we will confirm the right configuration with you before quoting.
| Model | Max thickness | Max work width | Quote |
|---|---|---|---|
| W12-8x2500 | 8 mm | 2,500 mm | Request a quote |
| W12-16x2500 | 16 mm | 2,500 mm | Request a quote |
| W12-25x3000 | 25 mm | 3,000 mm | Request a quote |
| W12-40x3000 | 40 mm | 3,000 mm | Request a quote |
